Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: ETOP
  • Model Number: ADS-U012SXXA IPEU
  • Usage: Other
  • Output Type: DC
  • Connection: Plug In
  • Product Name: 12V ac dc power supply adapter IP44 waterproof CE approved

Packaging & Delivery

Delivery Time 20 days
New Arrival
Application Scenario

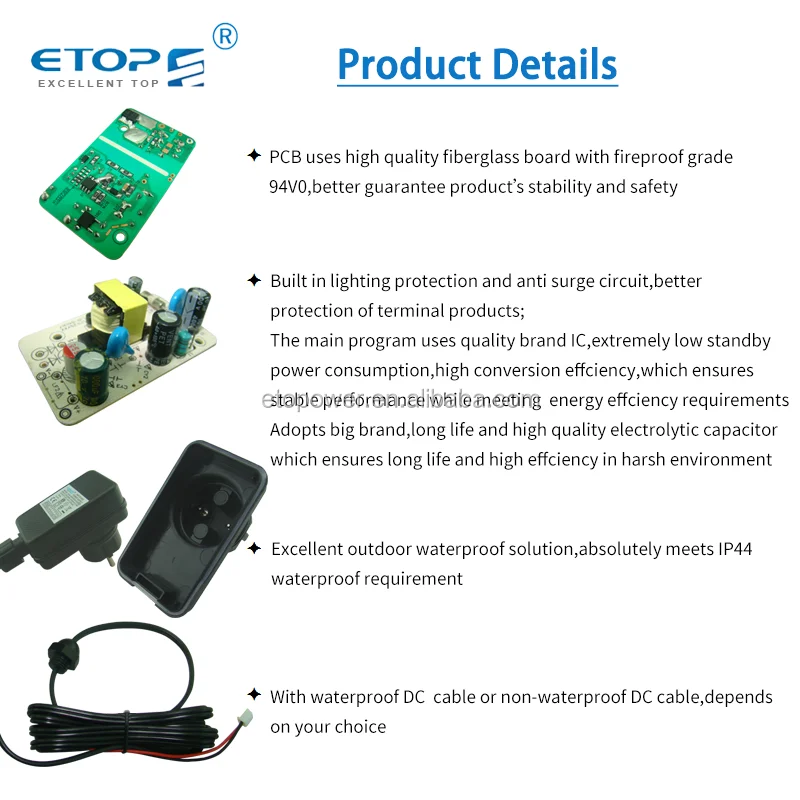

Product details
Product Description

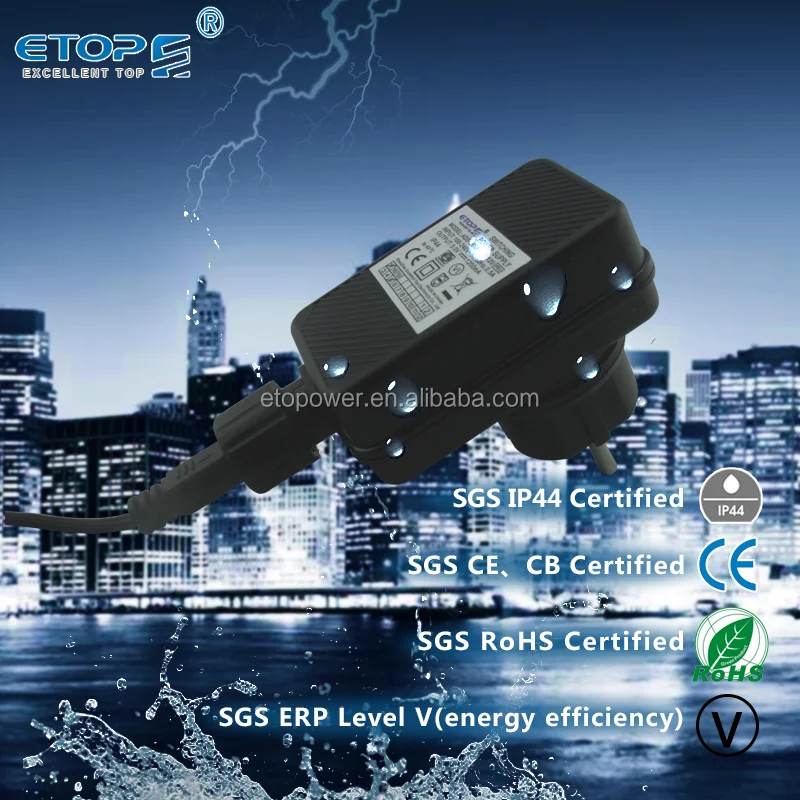

10W/12W ac dc power adapter IP44 waterproof CE approved


Features:

1.Universal AC input/full range;

2.100% full load burn-in testing;

3.Constant voltage type;

4.Waterproof fully enclosed plastic case;

5. SGS CE/CB approved;

6. SGS ERP level V approved;

7. SGS ROHS approved;

8. SGS  IP44 approved;

9.3-year warranty.


Parameters:

Model
Output
R&N
TOL.
Line regulation
Load regulation
Effi.
ADS-U010S05A
5V/2A
120mVp-p
±5%
±1%
±5%
80%
ADS-U010S07A
7V/1.42A
70mVp-p
±5%
±1%
±5%
82%
ADS-U010S09A
9V/1.1A
120mVp-p
±5%
±1%
±5%
83%
ADS-U010S12A
12V/0.83A
120mVp-p
±5%
±1%
±5%
87%
ADS-U012S05A
5V/2.4A
120mVp-p
±5%
±1%
±5%
79%
ADS-U012S07A
7V/1.7A
120mVp-p
±5%
±1%
±5%
82%
ADS-U012S09A
9V/1.33A
120mVp-p
±5%
±1%
±5%
83%
ADS-U012S12A
12V/1A
120mVp-p
±5%
±1%
±5%
85%
Input
Voltage Range
100-240VAC
Frequency Range
47~63Hz
Ac Current
0.3A/115VAC 0.15A/230VAC
Inrush Current(Max.)
50A/230VAC
Leakage Current(Max.)
0.75mA/240VAC
Protection
Over temp.
When the working Temp.reach 145℃±10℃,the producs turn into ouput hiccup mode
Over load
110% -200% of the rated output power                        Protection type : hiccup mode, recovers automatically after fault condition is removed
Over voltage
>115%~135%, hiccup mode, auto recovery
Environment
Working Temp.
-20~60℃
Working Humidity
20~90% RH,non-condensing
Storage Temp., Humidity
-30~+ 85℃ , 10~95% RH
Temp. Coefficient
±0.03%/℃ (0~50℃)
Vibration
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety & EMC
Safty Standard
CE
Withstand Voltage
I/p-0/P: 3KVAC I/p-FG: 1.5KVAC 0/p-FG: 0.5KVAC
Isolation Resistance
I/P-0/P, I/P-FG, 0/P-FG: 50M Ohms/500VDC/25℃/70% RH
Emc Immunity
COMPLIANCE TO FCC PART 15 Subpart B: 2016,ANSI C63.4:2014
Others
Mtbf
≥ 711 Khrs MIL-HDBK-217F(25℃)
Dimension
82.4*49.4*41mm (L*W*H)
Net  weight
0.125KGS
Connector
Plug
EU type( as enclosed)
DC Cable
Could be customized
